3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles

Product Categories

Xinghe Roll Forming Machinery Co.,Ltd

Contact Now

Model Number : Double layer

Certification : BV,SGS, CE,ISO9001

Place of Origin : Botou,Hebei Province

MOQ : 1 Set

Payment Terms : Western Union, L/C, T/T

Delivery Time : 20 Working days

Packaging Details : Naked and fixed into container

Voltage : 380V,3 Phase, 50-60Hz

Warrenty : Twelve Months

Color : Blue, green, red, orange or as customers' requirments

Origal palce : Botou city, Hebei province, China

Service : OEM, Label

Tile type : Colored Steel/ PPGI

Use : Roof

Production : 8-12m/min

Power : 3+3 KW

Roller material : 45# Steel Plated

Price : Negotiation

Contact Now

Galvanized meatal double layer roofing sheet roll forming machine double layer roof tile roller former machinery

1. Machine name: Double layer machine

Any two or three roof & Wall panel sheet can be produced in one double layer or three layer machine.

2. Machine parameters:

1	Material of input sheet	Galvanized steel/ colored steel
2	Feeding width	1000/1200/1220/1250mm for choice
3	Effective width	Design as customer's reuqirment
4	Material thickness	0.3-0.8mm
5	Main motor power	3kw
6	Hydraulic pump power	3kw
7	Forming step	13 steps
8	Diameter of shaft	75mm
9	Main frame	300H steel
10	Roller material	45# steel with chrome
11	Cutting knives material	Cr12
12	Machine size	6.01.51.5m
13	Machine weight	About 2.5 tons

3. Work flow:

manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

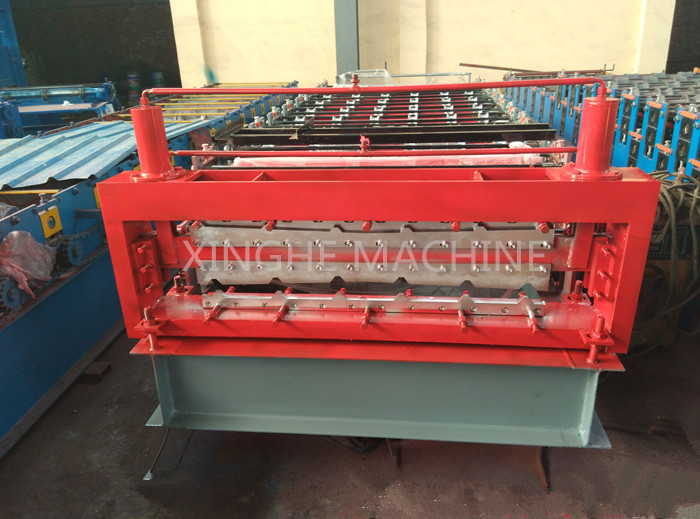

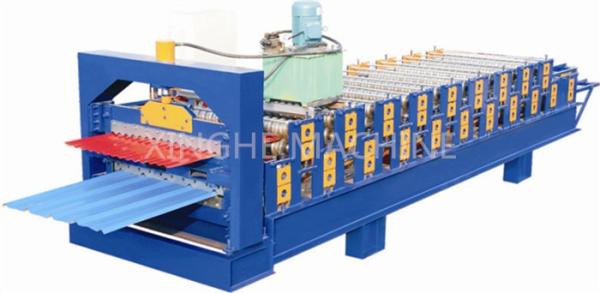

4. Machine pictures:

3kw Power Motor Metal Roofing Roll Former For 890mm Width Steel Red Tiles

Welcome to inquiry, if you may have any interest!

Email:xinghemachinery@yahoo.com

WhatApp:0086 134 0337 3867
